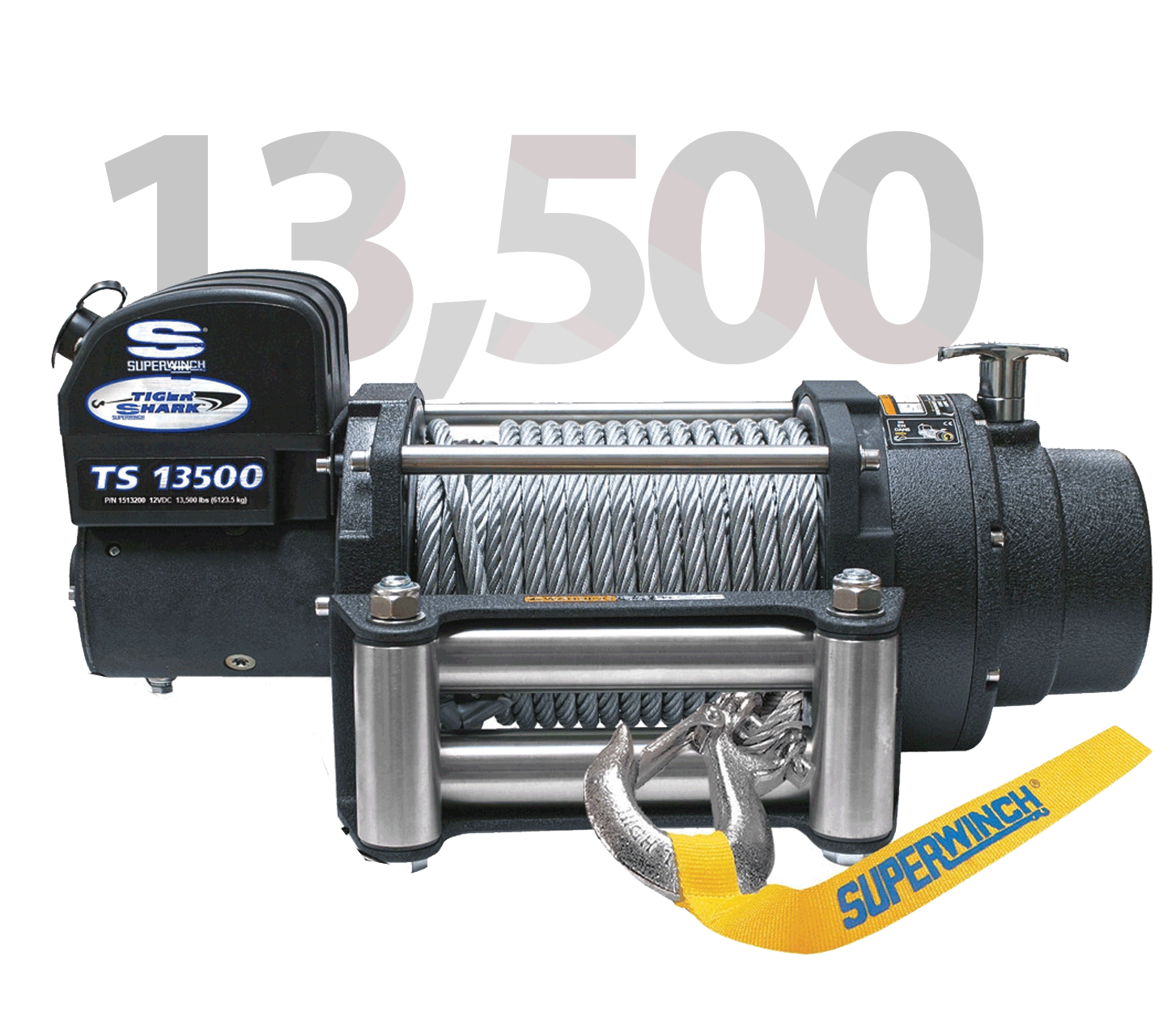

Winches / Superwinch winches / Tiger Shark series / Tiger Shark 13500
13,500 lbs
Description
| Rated Line Pull | 13,500 lbs (6123.5 kg) |
| Motor | Sealed 5.3 HP Series Wound |
| Gearing | 4-Stage Planetary |
| Gear Ratio | 518:1 |
| Solenoid | Weather Sealed Solenoid and Circuit Breaker Protected |
| Clutch | Pull and Turn, Ergo |
| Brake | Mechanical, Automatic Load Holding |
| Rope | Wire 13/32" x 95' (10.3mm x 29m) |
| Hook | Heavy Duty Clevis Pinned Latched |
| Fairlead | Heavy-Duty, Stainless Steel 4-Way Roller |
| Remote | 12' Rubber Hand-held |
| Dimensions | 23.6" L x 8.4" W x 11" H (601.5mm L x 214.5mm W x 279.5mm H |
| Drum Diameter | 3.5" (89 mm) |
| Drum Length | 8.7" (220mm) |
| Installed Weight | 134 lbs. (60.7 kg) |
| Shipping Weight | 140lbs (63.5 kgs) |
| Warranty | Limited 2 Year Warranty |
| UPC | 0 22705 00362 9 |
| Line Pull: 0 lbs (0 kgs) | 120 Amps Motor Draw/11 FPM (3.4 MPM) Line Speed |
| Line Pull: 13,500 lbs (6,123.5 kgs) | 370 Amps Motor Draw/4 FPM (1.2 M/M) Line Speed |
